The MB-45 system, made of durable aluminum, offers a modern solution for creating a variety of interior and exterior elements that do not require thermal insulation.
It is ideal for:

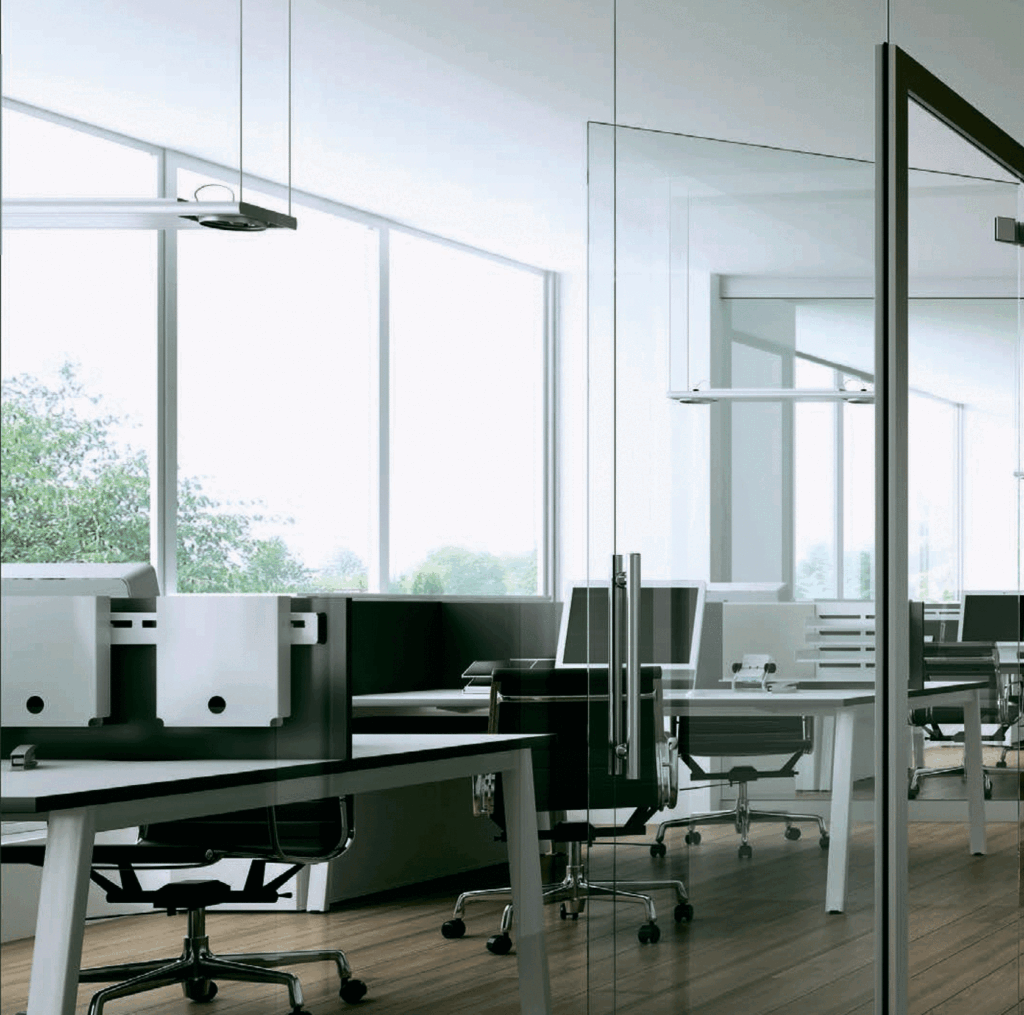

Partitions: Divide space stylishly and functionally.
Windows and doors: Allow light and air access with elegant designs.
Sliding and swinging doors: Choose the most suitable mechanism for your project.
Vestibules, showcases and checkout counters: Create an attractive and functional design for your retail space.
Spatial structures: Realize bold architectural ideas.
Key benefits:
Flexibility: The ability to bend profiles, including frames, sashes and slats, allows you to create graceful arches and arched structures.
Durability: EPDM synthetic rubber gaskets provide reliable sealing and resistance to aging for many years.
MB-45 is a reliable and versatile system that allows you to realize any of your architectural fantasies.
| Name | Parameters | Name | Parameters |
|---|---|---|---|
| Frame depth (door/window) | 45 mm | Sash depth (door/window) | 45 mm / 54 mm |
| Glazing thickness (fixed window and door / opening windows) | 1.5-32 mm / 1.5-34 mm | MIN profile width visible from outside | Frame (door/window) 66.5 mm / 27.5 mm, Sash (door/window) 66 mm / 27.5 mm |
| MAX size and weight of the structure | window size height up to 2400 mm (1850 mm), width up to 1250 mm (1600 mm) | MAX size of the door sash(H×L) | H up to 2400 mm (2200 mm), L up to 1250 mm (1400 mm). |

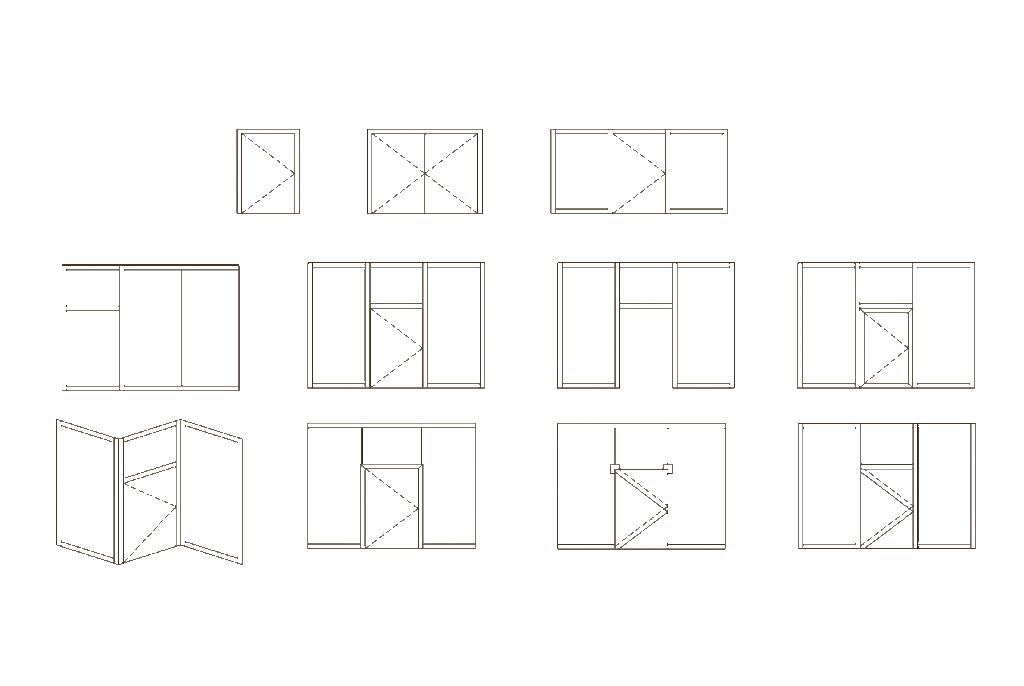

| MAX sash weight (door/window) | 120 kg / 130 kg 130 kg 120 kg | Available solutions | Walls and fixed windows, tilt and turn windows, outward and inward opening doors, rebated doors, partitions with doors smoke-tight doors |
The system provides reliable protection against rain and wind thanks to properly installed seals. This makes the doors resistant to the external environment.
The MB-45 allows you to install a variety of locking mechanisms and hardware, which increases security for users. This is important for both residential and commercial applications.

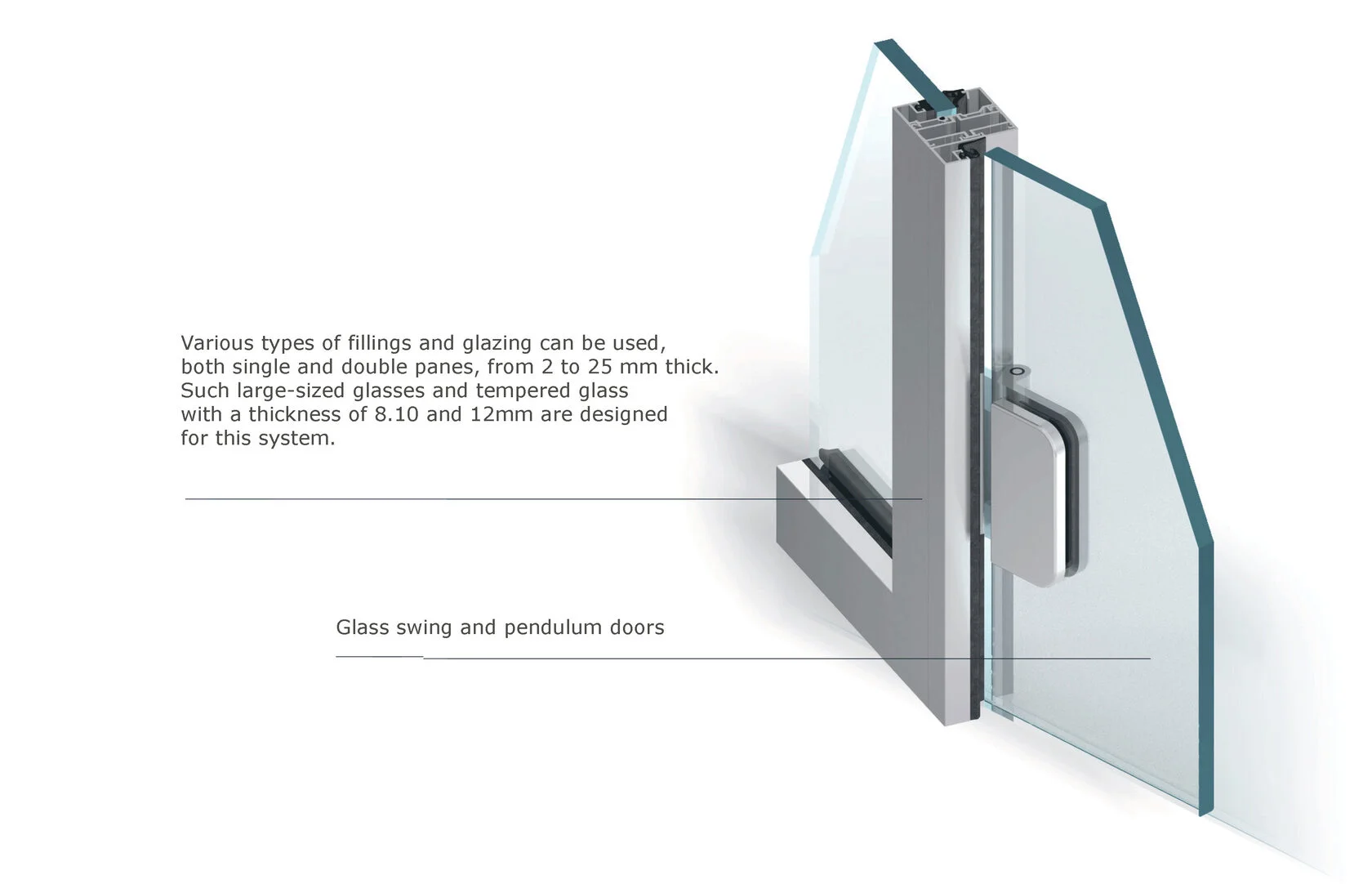

The design of the system allows the use of large glass surfaces, which contributes to the natural illumination of the interior space. This creates a comfortable atmosphere and visually increases the floor space.
Doors with this system are easy to open and close thanks to quality mechanical mechanisms. Users will appreciate the ease of use in everyday life.
The lack of a thermal insert makes the system less suitable for cold climates, but ideal for regions with moderate temperatures. This will ensure low installation and operating costs.
The system features a modern and minimalistic appearance that blends easily into any architectural scheme. Clean lines and no frames create a visually appealing space.
The MB-45 provides the ability to create single and double doors as well as sliding designs. This makes the system a versatile solution for a variety of needs.
The system is used for both residential and commercial applications, making it a sought-after system in the building materials market. Due to its durability and reliability, it is suitable for a variety of environments.
