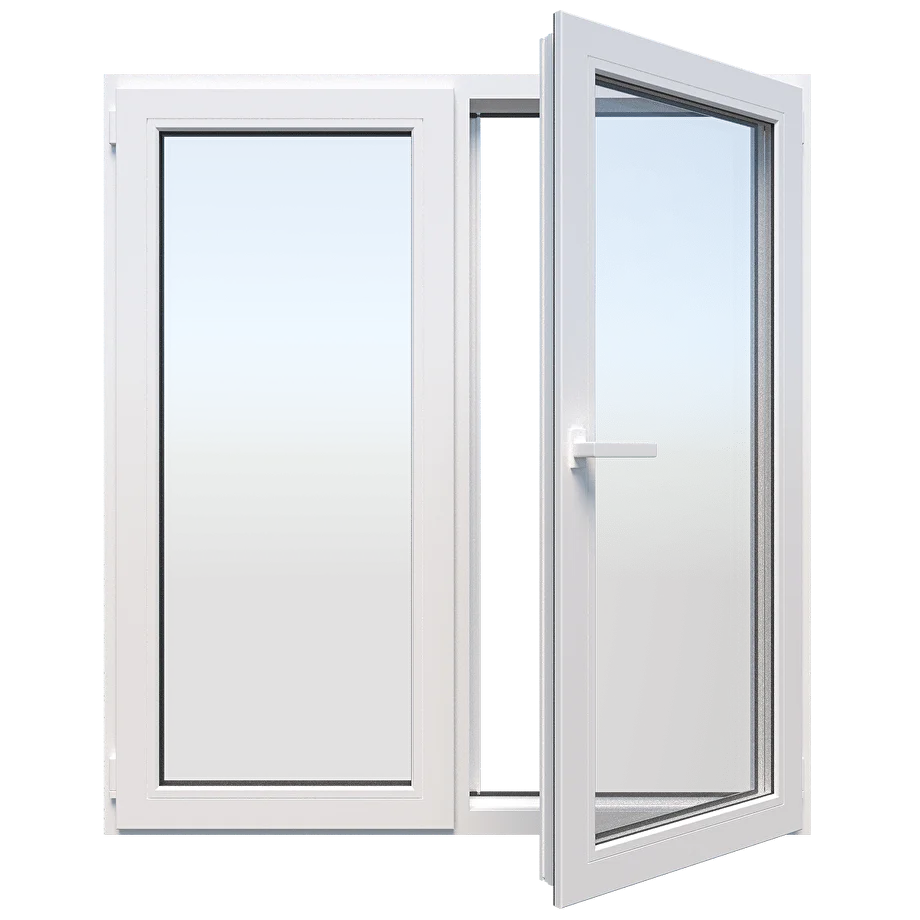

The IDEAL 4000 system is an innovative solution for modern windows and doors, created using advanced design and systems engineering technologies. Combining years of experience and the latest computer technology has allowed the development of a fully integrated set of profiles with a depth of 70-85 mm. The robust construction with reinforced steel reinforcements provides excellent static performance and allows the manufacture of larger window sizes. The multi-chambered profile system guarantees high thermal and acoustic insulation, meeting the most stringent requirements of today’s market and ensuring long-term reliability and excellence.
| Name | Options | Name | Options | ||
|---|---|---|---|---|---|
| Installation depth | 70-85 mm | Frame/sash set width | from 89 mm | ||
| MAX thickness of double-glazed window | 48 mm | Number of chambers | 5-6 | ||
| Sealing system | external (2 seals) | Reinforcement system | steel | ||
| Profile options | classic line, soft line, round line | Heat transfer coefficient | Uf=1.3 – 1.4W/m2K | ||
| Wind resistance | C4* | Water resistance | 9A* | ||
| Sound insulation | 34(-2 | -5)dB | Maximum sound insulation | 45(-1 | -3)dB* |
| Intra-technology bonding | yes | Foaming option | yes |
Providing airtightness, thermal insulation and soundproofing of window openings, as well as protection against atmospheric influences.
Manufacturing of window frames and sashes for residential and commercial buildings for various purposes (apartments, houses, offices, stores, etc.).
The IDEAL 4000 window system is a multi-chamber PVC profile with galvanized steel reinforcement. The system includes frame, sashes, seals, hardware and glazing.
The IDEAL 4000 system allows you to create different types of windows
