Made in Europe installed by Gold Crown

Pvc Lift and slide system Hst 85

Lift and slide system HST 85 mm

PVC sliding systems

Integration of the interior with the open space

The HST 85 lift and slide system is the ideal solution for creating large glass panels and sliding doors that harmonize with residential and commercial spaces. The main advantages of this system include a high degree of energy efficiency, which significantly reduces heating and air conditioning costs. Thanks to its excellent insulation properties, HST provides a comfortable indoor climate. In addition, the system’s noise insulation guarantees a quiet and cozy atmosphere in your home, protecting you from street noise. The ease of use of sliding doors adds convenience to everyday life, allowing you to effortlessly combine interior and exterior spaces. The elegant appearance of the panel not only stylishly emphasizes architectural features, but also creates a sense of spaciousness, increasing light and open space in any interior.

Technical Specifications

Name	Parameters	Name	Parameters
Profile thickness	85 mm (multiple chambers for optimal thermal and acoustic insulation).	Sealing systems	Two-level seals for improved protection against moisture and draughts.
Number of chambers	5 chambers in the frame, which provides excellent thermal insulation properties.	Rear structure	Possibility to install with a sill as inconspicuous as possible to improve access and aesthetics.
Thermal resistance	Uw up to 0.8 W/m²K (depending on the insulating glass used and configuration).	Color solutions	Availability of various color options and finishes, including wood lamination.
Maximum dimensions of the leaf	Width:up to 6 m (depending on the configuration), Height:up to 2.5 m (depending on the weight of the glass leaf).	Opening mechanism	Lifting-sliding mechanism, providing ease and convenience of use.
Double-glazed windows	Possibility to install double-glazed windows up to 52 mm thick. Availability of different types of double-glazed windows (two-chamber, three-chamber, etc.) to achieve the necessary heat and sound insulation characteristics.	Safety	Additional locking systems can be installed to increase the level of security.

Perfect thermal insulation

The HST 85 mm lift-and-slide system is available in three versions: from the basic version, which meets all the requirements of the latest energy-saving trends, to the standard version with additional thermal insulation and the premium version with excellent thermal insulation values.

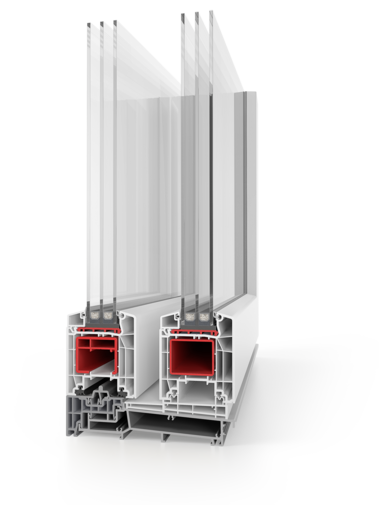

Basic

Classic
Uf value = 1.6 W/m²K

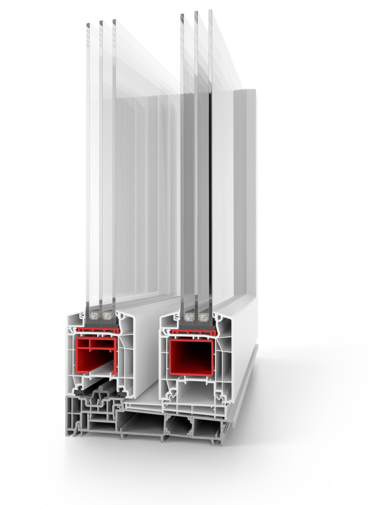

Standard

Threshold with thermal break
Uf value = 1.3 W/m²K

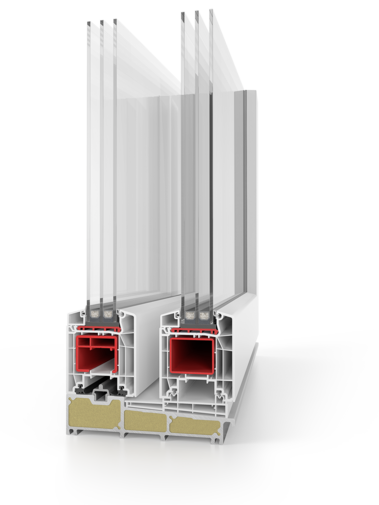

Standard

Threshold with thermal break
Uf value = 1.3 W/m²K

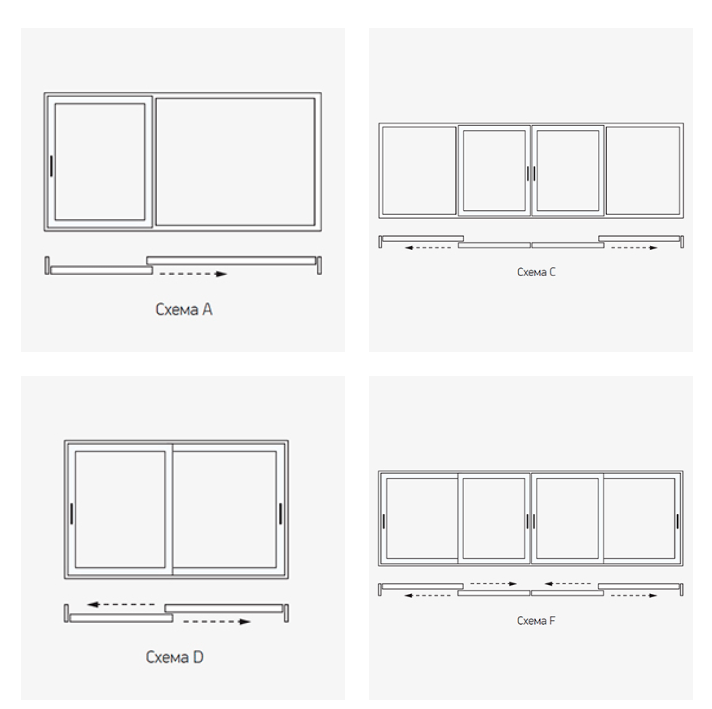

Configuration options

Double-leaf: One or both sashes can open like two large doors.
Four-leaf: Two sashes in the center or all four can move to create a wide passage.

Depending on your needs you can choose:

With one movable sash: A classic option where only one side opens.
With two movable sashes: Both sides open to create a spacious aisle.
With two fixed and two movable sashes: A combination of fixed and movable sashes for a beautiful design and functional passage.

Choose the HST configuration that is perfect for your home!

Functions

Why choose HST-85

High thermal and acoustic insulation

The use of quality materials provides excellent thermal insulation, which contributes to energy savings.

Aesthetic appearance

The minimalistic design with sleek lines allows the system to be integrated into any architectural style.

Reliability and durability

High-quality profiles and components ensure the durability of the construction.

Ease of use

Easy to open and close due to the smooth mechanism.

PANORAMIC VIEWS

HST 85 MM doors allow you to create impressive glass sliding structures that perfectly integrate the interior of the house with the outside space.

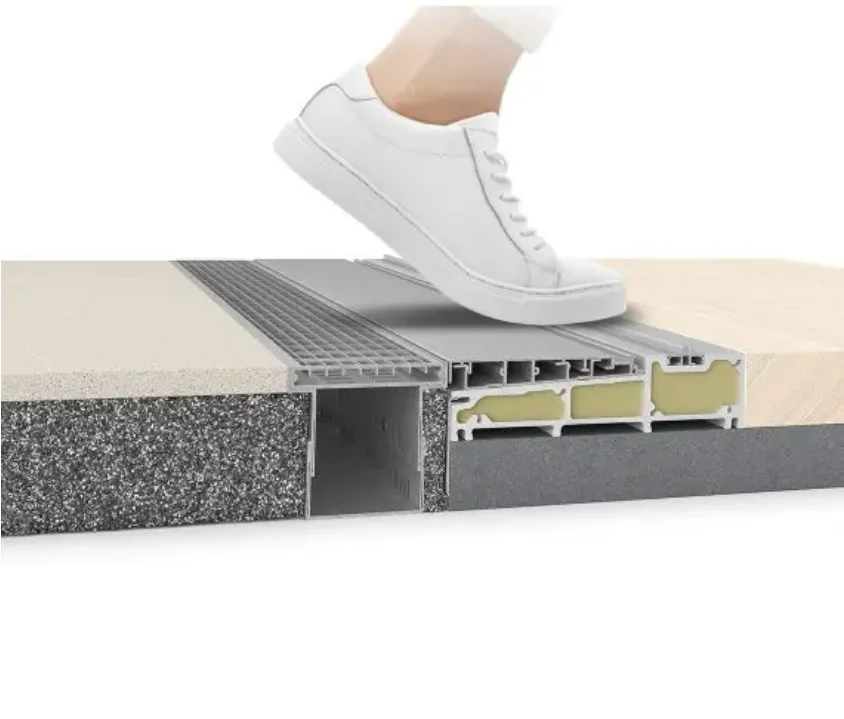

BARRIER-FREE HOME

The low door threshold with a height of 48 mm, which can be concealed from the room side over the entire height, meets the requirements of barrier-free construction.

MORE LIGHT

HST 85 MM also allows you to maximize the amount of light that enters the room and efficiently utilize the sun's thermal energy.

SPACE

These large-scale designs allow you to remove all restrictions, save space and freely shape the space in your home.

Color palette

RAL color palette

Matte sand

Modern gray colors

Other colors

Fittings

Handle sets for sliding and lifting constructions

Features

Design Features

The profile thickness of 85 mm adds rigidity and guarantees the stability of the structure.
Allows the installation of large glass panels, increasing the level of light in the room.
The sealing system provides reliable protection against external weather conditions.
The lift mechanism technology ensures that the doors are easy to move, making the system comfortable to use.
Our systems are manufactured to meet environmental regulations and standards.

Barrier-free design

HST doors are not just doors, they are freedom!
Modern, safe and stylish, they are designed to make your life more comfortable and easier. The low door threshold, only 48 mm high, is easily recessed into the floor, becoming an invisible boundary. This is the ideal solution for a barrier-free environment, providing easy access for people with disabilities, families with small children and anyone who values comfort and freedom of movement.
With HST doors:

Goodbye barriers! Make your home accessible to everyone.
Create a stylish and modern interior without unnecessary barriers.
Ensure safety and comfort for yourself and your loved ones.

HST doors are your key to barrier-free living!

Harmony of space

HST doors are an excellent alternative in terms of space organization compared to classic balcony doors, which enter deeply into the living space when opening the sashes. Despite the greater installation depth compared to a classic balcony door, it is the HST door that leaves more freedom of space management.
